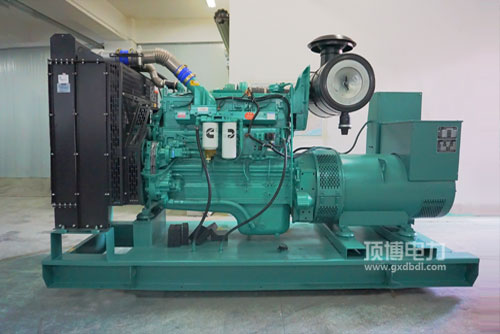

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电厂用汽车发动因汽油经济发展性好: 最先进的汽油调节操作操作系统，独具的STC、ESTC 划分调节操作操作系统，特种方案的缸筒边侧焚烧室，油田噴射汽油，做好雾化吸入，焚烧做好。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯生产发电用打火机瞬态使用性能比较好: 美好的打火机大体设计，相互配合康明斯独家的EFC设计，掌控的精密性好，响应的时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电机组用发起机升公率高: 整体的设定紧凑型suv.外表现场布置适当，正常运作市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷苹果机型 QSNT. QSK19. QSK38. QSK50实现我国非的道路第三个价段及南美Tier2. Tier 3进行排放政策法规需求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件可获得性好， 热车机程序运行及系统维护维护方便，价格低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作功率比率 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L看上去长度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的质量 Dry Weight   940kg

224-310KW康明斯电站用热车机的作用：体积大概小， 进行压缩比较高， 网格板空气的加温，更能打火，手机车载式电原的好选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机型号规格	实用电率(kW)Prime Power	备品工作电压kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
